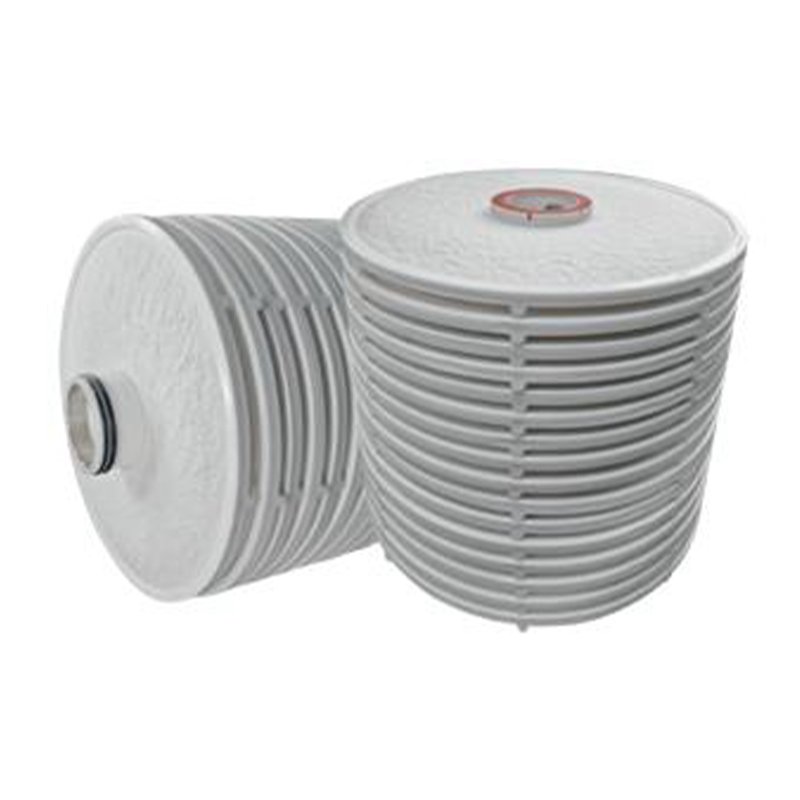

BIOPURE Lenticular Depth Filter

High-efficiency lenticular depth filter modules designed for clarification and particle removal in biopharmaceutical, food & beverage, water treatment and fine chemical applications.
Key Features
High-efficiency depth filtration
Available in DC (Diatomaceous Cellulose) and PC (Pure Cellulose) media
Excellent particle retention and contaminant holding capacity
Suitable for biopharmaceutical fluid clarification
Low extractables and good chemical compatibility
Polypropylene cage/end caps and core
Multiple adaptor and O-ring options
Autoclavable

Specifications
Filter Media: Diatomaceous Cellulose / Pure Cellulose
Cartridge Sizes: 12 inch (282 mm) & 16 inch (425 mm)
No. of Cells: 16
Filtration Area: 1.7 m² (12″) / 4.0 m² (16″)
Maximum Operating Temperature: 80°C
Maximum Differential Pressure: 2.4 bar (35 psi) @ 25°C
Rinsing Volume: 50 L/m²
Flow Rate: <20 L/min/m²
Steam Sterilization: 121°C for 30 minutes
Maximum Differential Pressure During Steam: 0.35 bar
Available Pore Sizes
DC Media:
0.1–0.2 µm, 0.2–0.5 µm, 0.6–1.0 µm, 1–5 µm, 3–7 µm, 5–12 µm
PC Media:
10–30 µm, 20–40 µm, 25–50 µm
Applications
Biopharmaceutical fluid clarification
Microbial reduction
Wine & beer clarification
Juice & tea-based beverage filtration
Prefiltration before final membrane filtration
Removal of coarse particles
Filtration of pharmaceutical/bioprocess fluids
Construction
Cage/End Caps: Polypropylene
Core: Polypropylene / SS 316L
Adaptor: Polypropylene
O-Rings: Silicone / NBR / Viton options
