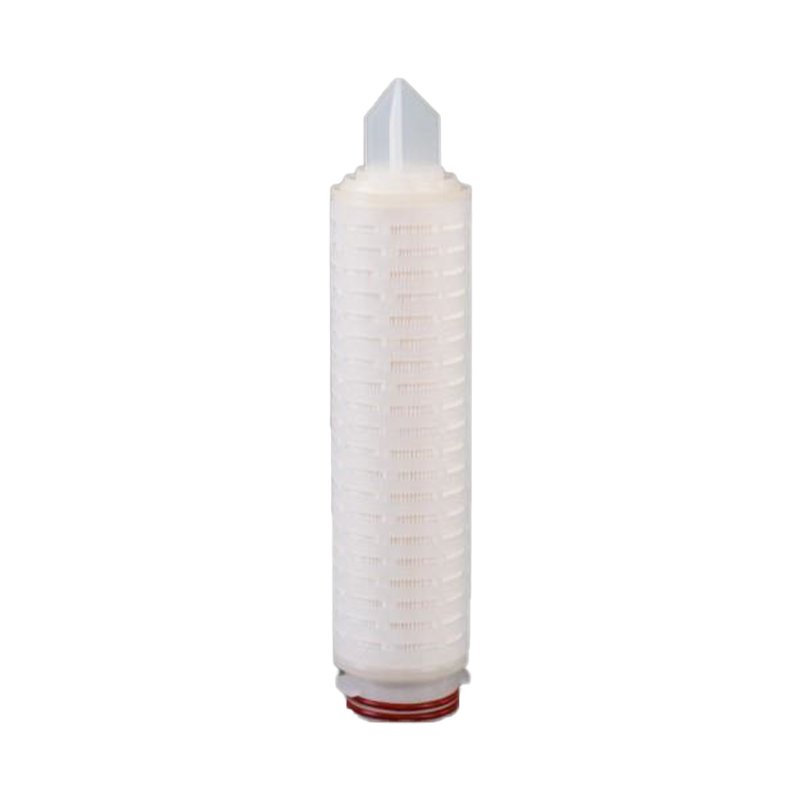

βIOPURE-SG PVDF Pleated Cartridge Filter

Key Features

Naturally hydrophilic membrane – No pre-wetting required.

Broad chemical compatibility – Suitable for demanding chemical applications.

100% integrity tested – Ensures consistent filtration performance.

High-porosity membrane – Provides very low protein binding.

High flow rate – Designed for efficient filtration.

Low extractables – Suitable for sensitive applications.

Long service life – Optimized pleated structure for extended operation.

Applications

High-purity chemical filtration

Small Volume Parenterals (SVPs)

Large Volume Parenterals (LVPs)

Pharmaceutical raw material filtration

Ophthalmic preparation filtration

Vaccines and biological products

Blood-derived product filtration

Oxidizing and strong-acid solutions

Technical Specifications

Membrane: Hydrophilic PVDF

Support Layer: Polypropylene

Housing: Polypropylene

Core: Polypropylene / SS 316L

Outer Diameter: 68 mm

Inner Diameter: 33 mm

Maximum Operating Temperature: 80°C

Maximum Differential Pressure: 5.2 bar @ 25°C (Forward)

Maximum Differential Pressure: 2.1 bar @ 25°C (Reverse)

Available Pore Sizes: 0.1, 0.2, 0.2+0.2, 0.45, 0.65, 1.0 μm

Sterilization: Autoclave / Steam-in-place options available

Ordering Information

Cartridge Code: CR

Membrane Code: PV

Series Code: SG

Available Lengths: 5″, 10″, 20″, 30″, 40″

Pack Sizes: 1, 5, 10 pieces
