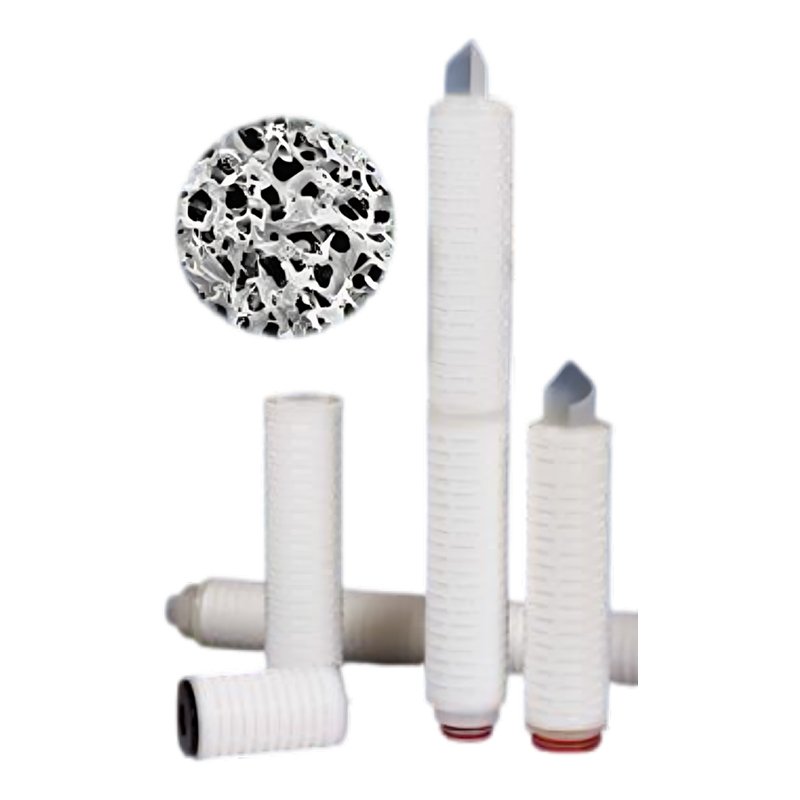

BIOPURE-SG PVDF Pleated Cartridge Filter – Hydrophobic Membrane

Key Features

Hydrophobic PVDF membrane

Absolute filtration performance

High flow capacity and long service life

Excellent chemical compatibility

Low protein binding

Suitable for gas and liquid filtration

Available in multiple pore sizes

Thermal bonding for reliable sealing

100% integrity testing

Suitable for pharmaceutical, food and bioprocess applications

Available Pore Sizes

0.10 µm

0.20 µm

0.20 + 0.20 µm

0.45 µm + 0.45 µm

0.45 µm

1.0 µm

Available Lengths

5″, 10″, 20″, 30″, 40″

Applications

Gas filtration in pharmaceutical and food industries

Bioreactor inlet and outlet air filtration

Compressed air and process gas filtration

Biological cleanroom applications

Fermentation tank and vent filtration

Aseptic packaging air filtration

Sterilizing filtration of solvents and disinfectants

Filtration of corrosive solvents

Materials

Component Material

Filter Membrane Hydrophobic PVDF
Support Layer Polypropylene
Cage/End Caps Polypropylene
Core Polypropylene / SS 316L
Adaptor Polypropylene
O-rings Silicone / EPDM / NBR / FEP Encapsulated Viton

Filter Dimensions

Outer Diameter: 68.5 mm

Inner Diameter: 33.0 mm

Filtration Area: ≥0.65 m² / 10-inch, single layer

Filtration Area: ≥0.55 m² / 10-inch, double layer

Operating Parameters

Maximum Operating Temperature: 1.7 bar @ 82°C

Maximum Differential Pressure Forward: 5.2 bar @ 25°C

Maximum Differential Pressure Reverse: 2.1 bar @ 25°C

Recommended Replacement Pressure: 2.4 bar

Regulatory Compliance

FDA 21 CFR 177.1655, ISO 10993 Part 5, BS EN 285:2015 + A1:2021, Regulation (EC) No. 1935/2004, ASTM F838, ASTM D6394, PDA TRS 26, USP <88> Class VI (121°C)

Recommended variations: Length × Pore Size × O-ring × Connection
