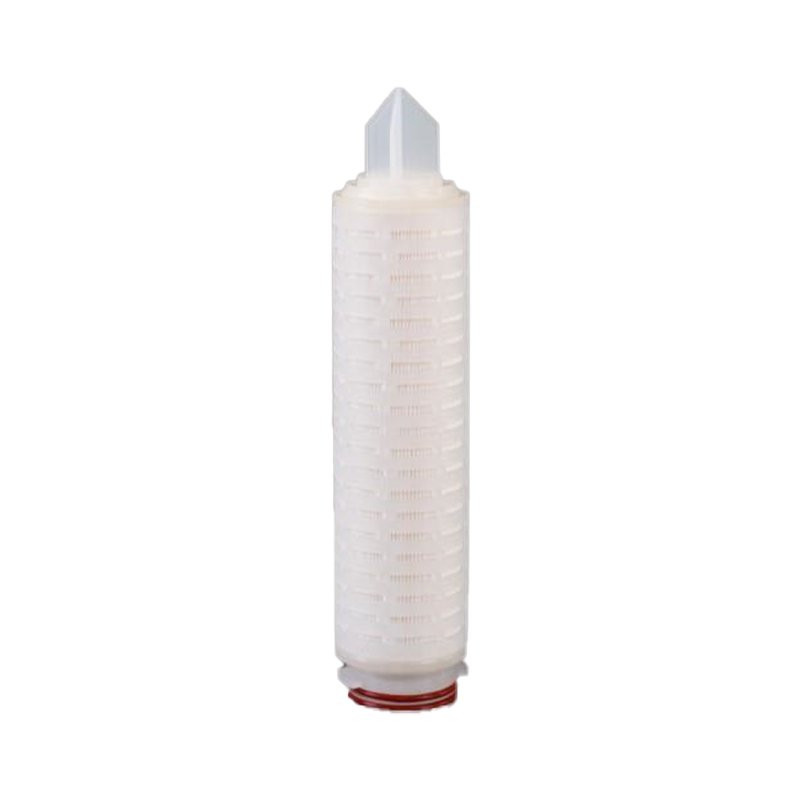

Hydrophobic PTFE Pleated Cartridge Filter

Key Features

Hydrophobic PTFE membrane suitable for gas and air filtration

High microorganism retention

Excellent chemical compatibility

High flow rate and optimized pressure drop

Long service life

High-temperature sterilization capability up to 140°C

Low extractables

100% integrity tested

Applications

Sterilizing filtration of compressed air and nitrogen

Fermentation tank, batching tank and tank vent filtration

Filtration of aseptic packaging air

Sterilizing filtration of solvents and disinfectants

Gas and chemical filtration applications

Technical Specifications

Filter Membrane: Hydrophobic PTFE

Support Layer: Polypropylene

Cage/End Caps: Polypropylene

Core: Polypropylene / SS 316L

Adaptor: Polypropylene

Outer Diameter: 69.0 mm

Inner Diameter: 33.0 mm

Filtration Area: ≥0.74 m² / 10 inch

Maximum Operating Temperature: 80°C

Maximum Differential Pressure (Forward): 5.2 bar @ 25°C

Maximum Differential Pressure (Reverse): 2.1 bar @ 25°C

Bacterial Endotoxin: ≤0.25 EU/mL

Extractables: ≤5 mg/10 inch

Available Pore Sizes

0.05 μm | 0.1 μm | 0.2 μm | 0.45 μm

Available Cartridge Lengths

5″ | 10″ | 20″ | 30″ | 40″

Sterilization

Autoclave: 126°C / 60 min / 100 cycles
Autoclave: 140°C / 60 min / 40 cycles
Steam-in-Place: 126°C / 60 min / 100 cycles
Steam-in-Place: 140°C / 60 min / 40 cycles

Regulatory Compliance

FDA 21 CFR 177.1655
ISO 10993 – Part 1, 5
BS EN 285:2015+A1:2021
ASTM F838
PDA TRS 26
USP <88> Class VI (121°C)
