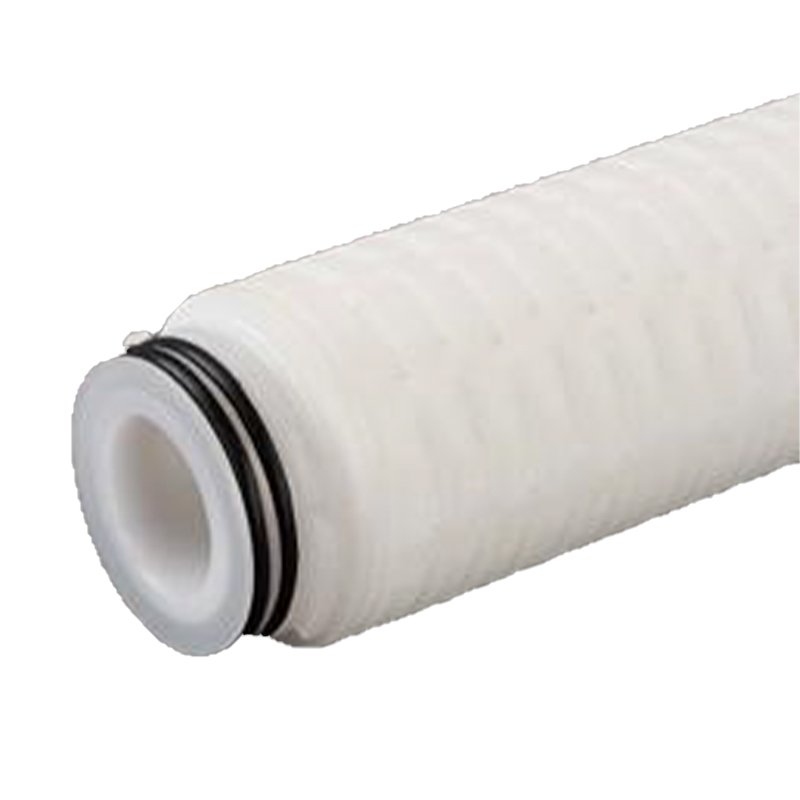

BioPURE-SG Hydrophilic PTFE Pleated Cartridge Filters are designed for high-performance liquid filtration, offering excellent microbial retention, broad chemical compatibility, high flow rates, and long service life.
Key Features
Hydrophilic PTFE membrane for aqueous and demanding filtration applications.
High chemical compatibility with aggressive and corrosive liquids.
High porosity with no pre-wetting required.
High flow rate with low pressure drop.
Low extractables for cleaner filtration.
Long service life and reduced filter replacement frequency.
Excellent particle retention efficiency.
Thermally bonded construction without adhesives or surfactants.
Multiple configurations available.
Suitable for OEM projects and customized requirements.
Applications
Sterilizing filtration of aqueous pharmaceutical and food products.
Sterile filtration of ophthalmic solutions and antibiotics.
Sterilizing filtration of aggressive and corrosive liquids.
Filtration of corrosive aqueous chemical reagents.
Biopharmaceutical and laboratory liquid filtration.
Main Specifications
Membrane: Hydrophilic PTFE
Support Layer: Polypropylene
Core: Polypropylene / SS 316L
Outer Diameter: 68 mm
Inner Diameter: 33 mm
Filtration Area: ≥0.74 m² / 10 inch
Maximum Operating Temperature: 80°C
Maximum Differential Pressure (Forward): 5.2 bar @ 25°C
Maximum Differential Pressure (Reverse): 2.1 bar @ 25°C
Pore Sizes: 0.2 µm, 0.45 µm
Sterilization: Autoclave / Steam-in-place options
Compliance
ASTM D6394 SP0112 | FDA 21 CFR 177.1655 | ISO 10993 | USP <88> Class VI | EU Regulation (EC) No. 1935/2004 | ASTM F838 | PDA TRS 26
Ordering Information
Cartridge Code: CR
Membrane Code: PT
Series Code: SG
Available Lengths: 5″, 10″, 20″, 30″, 40″
Pack Size: 1 / 5 / 10 pcs depending on configuration.
